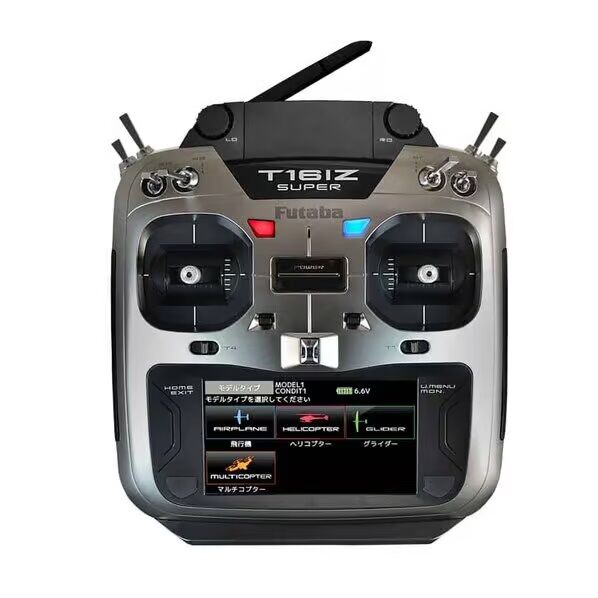

16IZS Transmitter – 18-Channel Computer System

---

2-Stick, 18-Channel, FASSTest 2.4 GHz System

---

FEATURES

FASSTEST SYSTEM:
The Futaba 16IZS transmitter adopted the bidirectional communication system FASSTest. Data from the receiver can be checked in your transmitter. FASSTest is a maximum 18 channels (linear 16 channels + switch 2 channels) 2.4 GHz dedicated system.

S.BUS2 SYSTEM:
By using the S.Bus2 system multiple servos, gyros and telemetry sensors are easily installed with a minimum amount of cables.

USB SIMULATOR CONTROL:
The T16IZS offers USB C compatibility for simulator control when used with Windows OS Joystick function.

COLOR TOUCH SCREEN LCD:
T16IZS has an updated HVGA 4.3 inch, full-color backlit LCD touch screen. The screen is transflective which enables both indoor and outdoor visibility.

MULTI HOLDER:
T16IZS Offers Multi holder near the antenna/charging port. It allows for accessories to be mounted using an M3 style screw.

Voice Telemetry:
The Futaba T16IZS transmitter allows for audible telemetry data to be read aloud for easy understanding of crucial parameters while flying.

SECURE DATA (SD CARD):
Model data files can be stored on optional microSD card. The microSD card is also used when updating the software/features of the T16IZS.

EDITING:
The touch panel and two enter keys allows you to edit your model in the manner that is easiest for you.

FUNCTIONS:
With the powerful internal processor. Most of the mixing functions are operated by curves which give you very precise settings and improved feel.

STICK:
Each stick offers our reliable single ball bearing for each axis. With our high cycle potentiometer this allows for finer and more precise operation.

VIBRATION FUNCTION:
Low voltage and other alarms are generated by a vibration motor. Alarms or vibrations to be used can be selected by the owner.

R7208SB:
The system comes with the R7308SB S.Bus2 Dual Antenna Diversity receiver featuring bi-directional communication.

---

CONTENTS

YOUR FUTABA 16IZS TRANSMITTER INCLUDES THE FOLLOWING COMPONENTS:

• T16IZS Transmitter
  • Air Version includes ratcheting throttle
  • Helicopter Version includes smooth throttle
• R7308SB Receiver
• Neck Strap
• Manual (Printed short version. Find full version here)

---

FUTABA 16IZS TRANSMITTER SPECS

TRANSMITTER FREQUENCY:
2.4 GHz band

OPERATING SYSTEM:
2-Stick, 18-Channels, 2.4 GHz FASSTest/FASST/T-FHSS/S-FHSS System

RF POWER OUTPUT:
100 mW EIRP

---

RECEIVER SPECS

R7308SB

SIZE: 24.9 x 47.3 x 14.3 mm (0.98 x 1.86 x 0.56 in)

WEIGHT: 12.0 g (0.42 oz)

POWER REQUIREMENTS: 6.6 V LiFe Battery

CURRENT DRAIN: 75 mA

RF POWER OUTPUT: 25 mW EIRP

---

Futaba 16IZS Transmitter Compatible Receivers*

S-FHSS PROTOCOL

• R2008GS
• R2008SB
• R2106SB
• R2001SB
• R2000SBM

T-FHSS TELEMETRY PROTOCOL

• R3001SB
• R3004SB
• R3006SB
• R3008SB

T-FHSS MONO (NON-TELEMETRY)

• R3206SBM
• R3106GF

FASST7 AND FASST MULTI

• R6004FF
• R6008HS
• R6014HS
• R6016HF
• R616FFM
• R617FS
• R6202SBW
• R6203SB
• R6208SB
• R6303SB
• R6303SBE

FASSTest12 and FASSTest18

• R7003SB
• R7006SB
• R7008SB
• R7108SB
• R7014SB

*As of June 29, 2022
