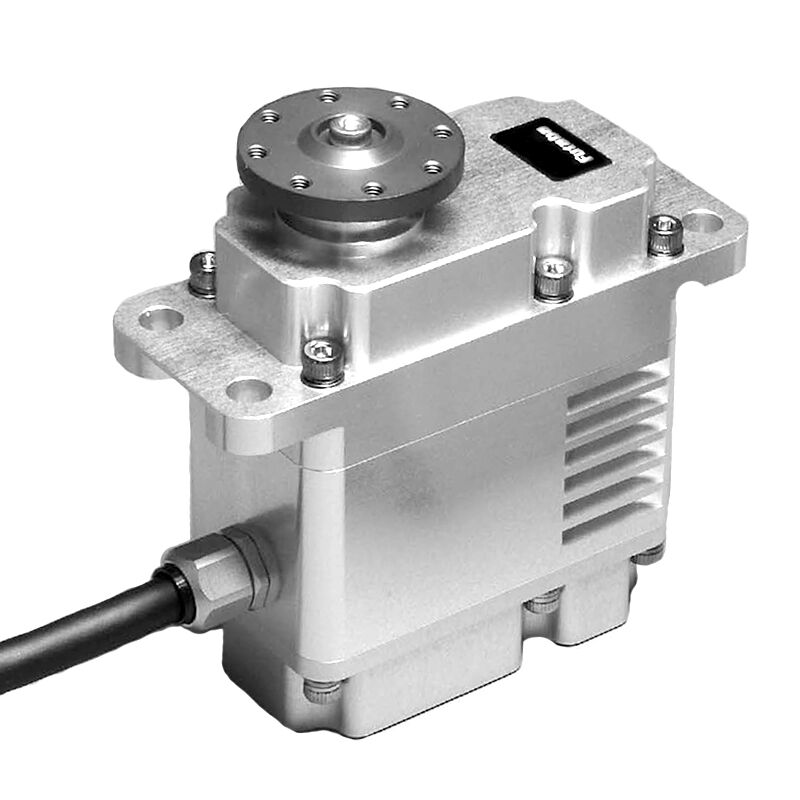

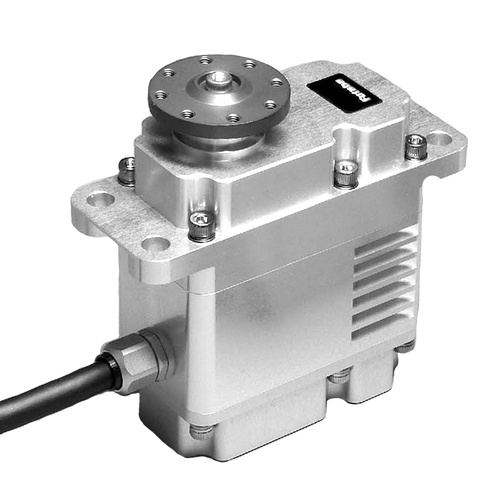

AJ9DA41 (12V)

High Powered Servo

• – All metal construction including casing, gears, and output-horn.
• – Output Cable – Shielded Fixed/Non-Removable
• – IP64 level water/dust resistance
• – Dimensions – 64.2 x 34.0 x 73.7 mm or 2.53 x 1.34 x 2.90 in
• – Weight – 337 g or 11.9 oz
• – Torque at 11.1 V – 84 kgf*cm or 8.24 N-m or 1167 oz*in
• – Speed at 11.1 V – 0.27 sec/60 degrees or 222 degree/sec

Download PDF

AJ9DA/LJ9DA series are compatible with the following signal types:

– PWM: Conventional signal for servo of radio control use (ex. Pulse width of 1,520μS = center).
– S.Bus/S.Bus2: Futaba’s original serial signal format.
– RS485: Same as Futaba’s bi-directional protocol for “Command type servo for robot.”
– Do not use each protocol at the same time or the unit will get fatal damage.
– Analog DC output for monitoring the rod shaft position. The position can be monitored while powering up.
