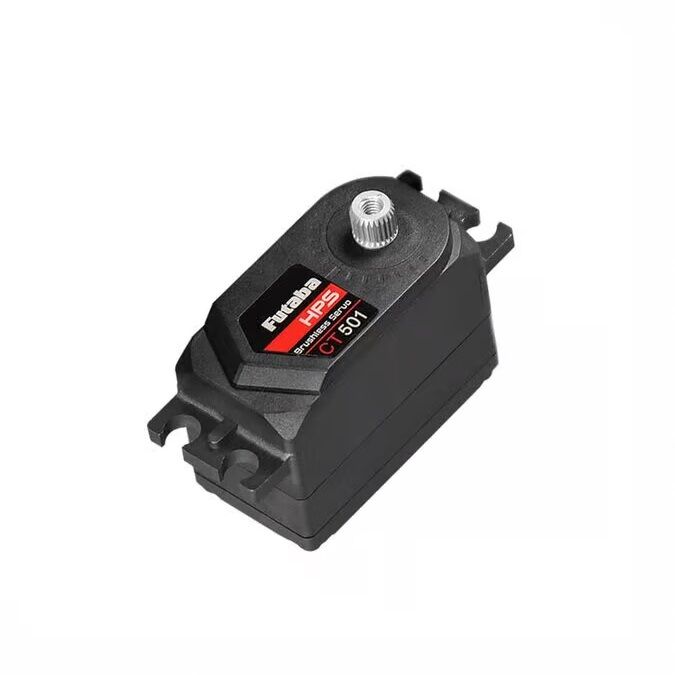

HPS-CT501– S.Bus2 High-Voltage Standard Surface Servo

High Performance Servo with Brushless Motor

FEATURES:
– Suitable for RC cars drift and 1/10 scale on/off road.
– Programmable/HV Brushless Servo.
– Custom New high power Brushless Motor.
– Supports SR mode with T7PX/7PXR
– Supports UR mode with T10PX
– Programmable and compatible with S.Bus and S.Bus2 systems.
– Can be connected to a PC using the CIU-2/-3 USB adapter sold separately.
– Upper/middle/bottom: Plastic Case
– 1st, 2nd ,3rd and final gears : Metal
– Cable color : Black-grey

SPEED:
0.06 sec/60° at 7.4V

TORQUE:
21.0 kgf/cm at 7.4V
291.6 ozf/in at 7.4V

SIZE:
40.5 mm x 21 mm x 26.9 mm
1.59 in x 0.83 in x 1.06 in

WEIGHT:
44 g
1.55 oz

RATED VOLTAGE:
DC 6.0V-7.4V

OPERATING VOLTAGE:
DC 4.8-8.4V

NO DRY BATTERY USE

ONLY FOR RC CARS SMALLER THAN 1/5 SCALE
