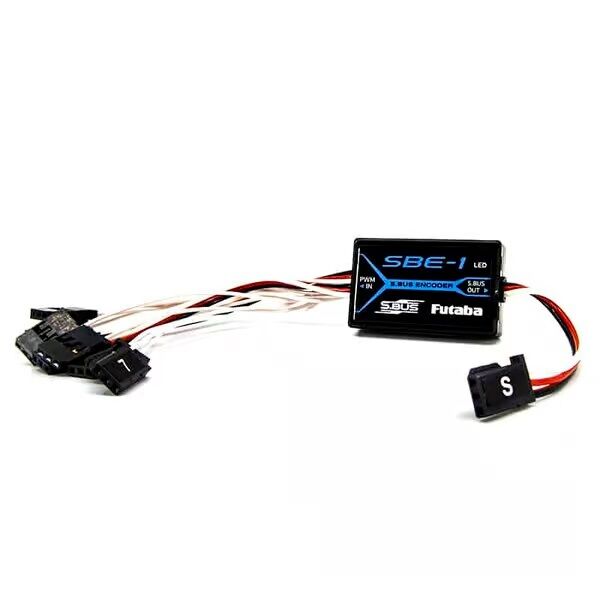

SBE-1-S.Bus Decoder Adapter

PWM to S.Bus Converter

PWM INPUT:
Max 10 Channels

INPUT PULSE WIDTH:
805 ~ 2,235 μS

INPUT FRAME RATE:
3 ~ 27.3 mS

OUTPUT SIGNAL:
S.Bus

S.BUS DATA RATE:
100 kbps

OUTPUT FRAME RATE:
Approximately 7 mS

OPERATING VOLTAGE RANGE (RATED):
4.8 ~ 7.4 V

DIMENSIONS (EXCLUDING CABLE):
23.5 mm x 33.5 mm x 9.5 mm

WEIGHT (INCLUDING CABLE):
15 g

OPERATING TEMPERATURE RANGE:
-10 ~ 45° C

STORAGE TEMPERATURE RANGE:
-20 ~ 60° C
