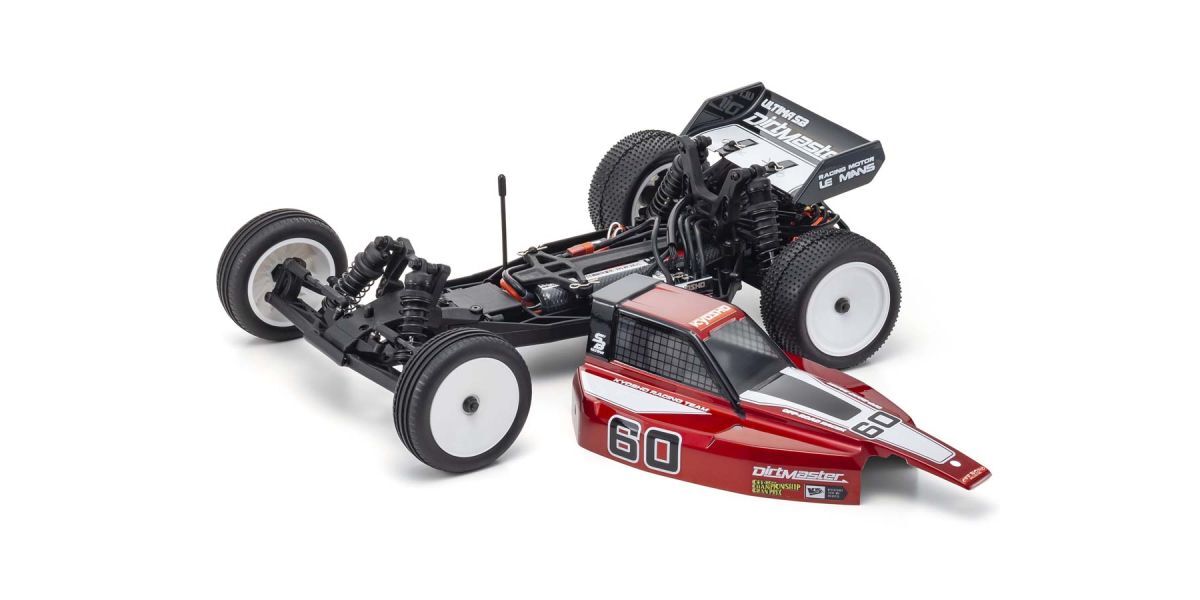

Kyosho 1/10 EP 2WD Racing Buggy Dirt Master 34311

Technical Data

?Length 380mm
?Width 249mm
?Height 140mm
?Wheelbase 270mm
?Tread F:221mmR:201mm
?Tire F:?84×28mm R:?86.5×42mm
?Gear Ratio 8.23?1
?Weight 1,450g (approx.)
?Motor (sold separately)

Kit Content

? Kit Contents ?
?Unassembled kit set
?Polycarbonate clear body
?Wing
?Window mask seal
?Decals
?Chassis parts
?Cross wrench
?Hex wrench?1.5mm/2.0mm?
?Grease
?Tires, Tire Inners, Wheels
?Pinion Gear

Requirement to Run

?REQUIREMENT TO RUN?
?2ch?3ch transmitter & receiver for R/C cars
?Servo
?ESC
?Motor
?Silicone oil for Shock
?Batteries for chassis(2S Lipo Recommendation?
?Charger
?Paint for coloring body (*spray paint for polycarbonate)
?Tool

Please Note: This product comes UNPAINTED .

Only use a polycarbonate style paint such as the Tamiya PS series to finish these parts, as standard paints will not adhere and/or cause damage to the surface.WHERE DOES ADVENTURE TAKE YOU? Developed as a 'neo-retro' model, the "Dirtmaster" combines modern chassis design with traditional features.

Breathtaking performance powers you over any low-grip surface from vacant lots to full-scale racing circuits.

For your first Kyosho buggy, this is the one! Video Key Features ChassisModerate flex characteristics of the resin main chassis enhances grip for control stability and allows plenty of room for easy installation and assembly of RC components.

Rear Mount MotorGrip and drive power is increased with the rear overhang motor mount that achieves superior traction and driving stability. A motor guard is also equipped to protect the motor from impact after jump landings.

SuspensionSuperior surface tracing from the proven double-wishbone suspension system incorporates turnbuckle rods that allow length to be adjusted for efficient setting changes.

Resin oil-filled shocks absorb and reduce shocks from the road surface to maintain stable posture.

With dial-adjustable spring tension, chassis height is easily changed.

Compatible with competition-level springs.

Slipper ClutchISlipper clutch is included as standard to protect the gears by allowing moderate slip when the drive system is under heavy load and allows adjustment of driving characteristics.

Gear cover can also be installed to protect the gears from dirt and dust.

DifferentialRear gear differential enables smooth cornering and is easy to assemble and maintain.

For elevated performance on racing circuits, the ball differential for the Ultima series can be installed.

Ball BearingFull ball bearings that reduce drive loss equipped throughout the drive system.

Required Items7.4v LiPo Battery & Compatible Charger .

Standard Sized Servo .

Electronic Speed Controller (ESC) .

Motor . 2Ch Transmitter & Receiver .

Tamiya PS Paint .
