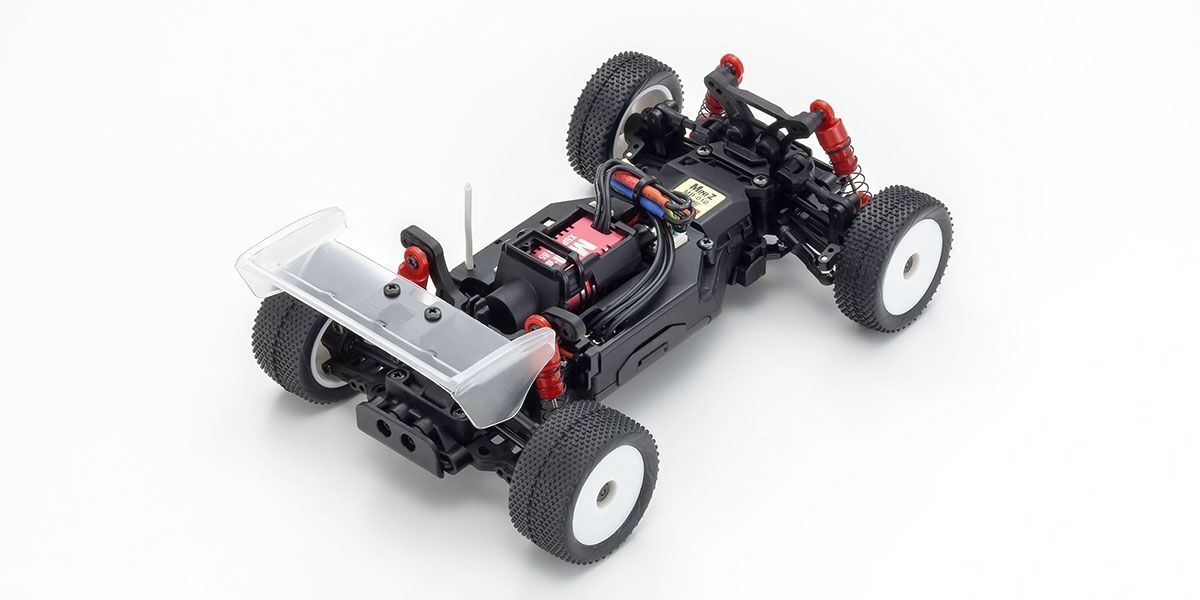

Kyosho MINI-Z Buggy MB-010VE 2.0 Inferno MP9 Clear Body Chassis Set 32293

Item No.: KYO-32293

Please login or register to view pricing.

MINI-Z Buggy VE 2.0 equipped with FHSS receiver and comes with body, wheels and tires!

The MINI-Z Buggy MB-010VE 2.0 Chassis Set great for a racing platform. The newly designed ESC circuit board delivers vastly improved throttle control, enabling the posture to be controlled through jumps for a distinct racing advantage. In addition to the throttle and brake parameter settings possible with the previous model ESC with Setup Cable (No.82082, sold separately) and free software download, this new circuit board features brake frequency and ESC protection settings. With each parameter setting, you can create a MINI-Z Buggy that fits your driving style perfectly. The receiver is compatible with the KT-531P and KT-432PT transmitters; MINI-Z RWD, AWD, FWD and Buggy Readyset users can step into the exciting off-road racing using an on-hand transmitter.

  • MINI-Z Buggy MB-010VE 2.0 Chassis Set, equipped with brushless motor.
  • New ESC jointly developed with Scorpion Power System enables precision adjustment of each setting.
  • Newly developed ESC circuit board dramatically improves throttle control.
  • Additional settings include brake frequency and ESC protection settings.
  • New version with additional setting options. Settings can be changed with Setup Cable (No.82082, sold separately) and free software download.
  • Full bearing specifications, just like the current Buggy Series.
  • Includes previously optional Under Guard and Ball Stud Wrench (MBW033) for increased chassis rigidity.
  • Huge range of optional parts is available for tuning upgrades.
  • Comic Racer body can be installed by using No.MB022 Shock Stay / Body Mount Set.

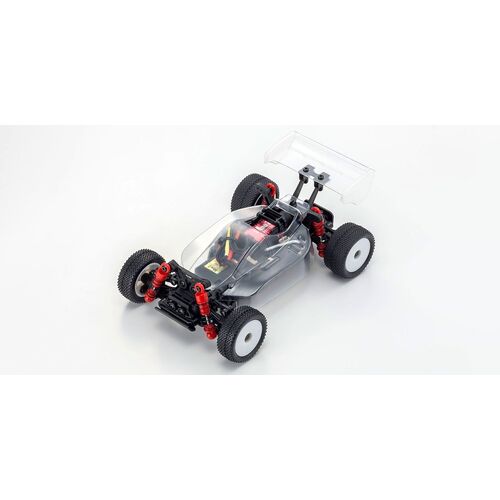

  • Comes with Inferno MP9 TKI clear body, tires and wheels.
  • Receiver board is compatible with KT-531P/KT-432PT transmitters. Optional gyro ( sold separately) can be installed and the gyro effect can be controlled with a volume on the chassis, or from the transmitter when used with a KT-432PT.

technical-image-01
Dynamic acceleration of shaft drive 4WD + 4 wheel independent suspension condensed into Mini-Z size. Charges over gaps with ease.
technical-image-02
Equipped with newly designed ESC circuit board that dramatically improves throttle control. Download the free software and connect with the Setup Cable (sold separately) to find the settings that perfectly fit your driving style.
technical-image-03

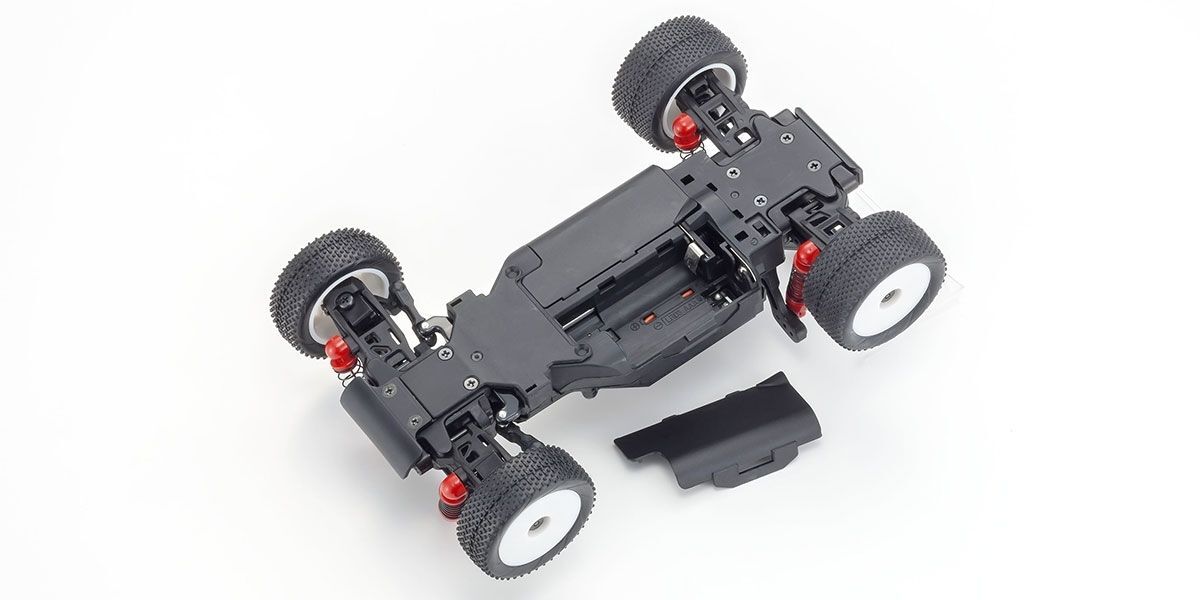

Equipped with optional under guard (MBW033) as standard to deliver improved chassis strength and protection from crashes and jump landings.
technical-image-04
Features the high power and durability of SPEED HOUSE XSPEED 85 (8500KV) brushless motor. Benefit from the extended RPM range and flat torque feel.
technical-image-05
Gold plated motor terminals are more resistant to oxidation and deliver superior conductivity and power efficiency compared to silver or copper.
technical-image-06
Included oil shocks deliver excellent shock absorption and road holding.

TECHNICAL DATA

  • Length:              163mm
  • Width:                105mm
  • Height:               46mm
  • Wheelbase:       115mm
  • Tread(F/R):      89mm/89mm
  • Tires(F/R):        φ37×13.5mm/φ37×18.5mm
  • Weight:              200g approx.
  • Motor:                SPEED HOUSE XSPEED 85 (8500KV)

KIT CONTENT

  • Factory assembled MB-010VE chassis installed with Team ORION XSPEED VE brushless motor.
  • Pinion gears x 3 (11T, 13T, 15T)
  • Spur gears x 2 (33T, 35T)
  • Wheel wrench
  • Pinion gear tool
  • Pairing stick
  • Spare wheel nuts

REQUIREMENT TO RUN

  • KT531P/KT432P transmitter
  • Body for buggy
  • Paint for body
  • Wheels and tires for buggy
  • 4 x AAA alkaline or Ni-MH batteries for chassis
  • 4 x AAA alkaline batteries for transmitter (EX-5UR ASF requires 8 x AA alkaline batteries)

(KYO-32293)

SKU KYO-32293
Barcode # 4548565438129
Brand Kyosho
