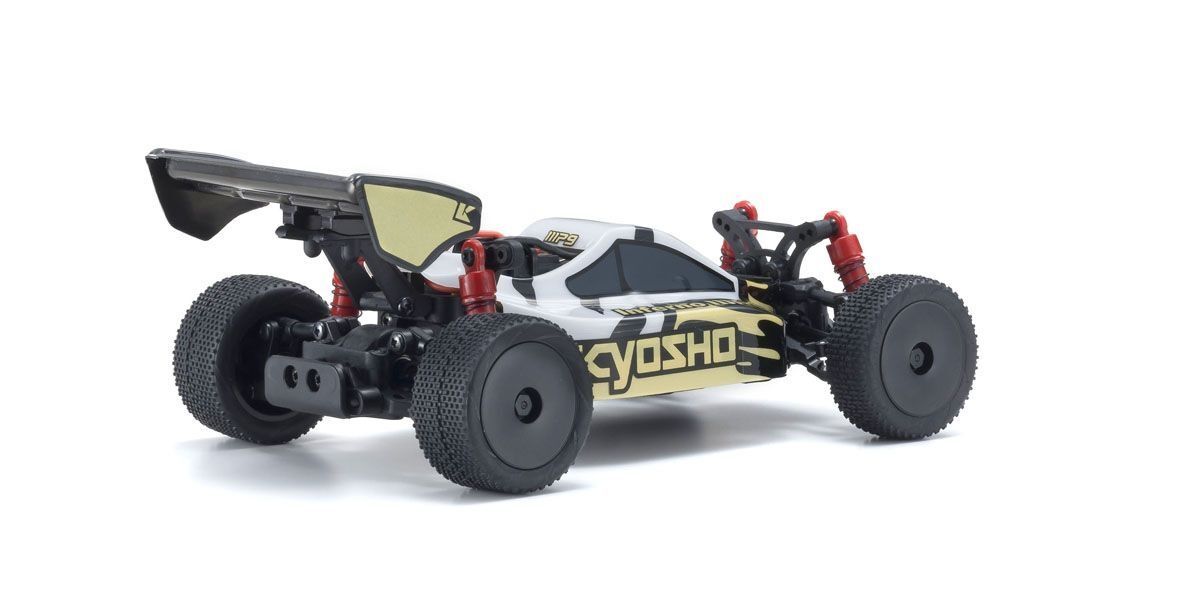

Kyosho MINI-Z Buggy Readyset INFERNO MP9 White/Black 32093WBK

Item No.: KYO-32093WBK

Please login or register to view pricing.

Real racing buggy performance sits on the palm of your hand.
The perfect first (or even second) R/C car!

Simply add eight AAA-size alkaline batteries to this Readyset and the MINI-Z Buggy brings the fun of R/C car action. The advanced compact design includes 4WD drive train with slipper clutch to protect the gear system, and 4-wheel independent double wishbone suspension with oil-filled shocks to deliver true racing buggy performance. Most critical components are protected within the high-rigidity dustproof chassis shell. 7-stage geared steering servo provides plenty of torque for precision steering response and combines with the control program to realize the MINI-Z’s signature linear handling and light feel. The circuit board also features manual left/right volume adjustment for the optional gyro unit (sold separately) that stabilizes straight line running and improves cornering control. Modeled on the popular Inferno MP9, the MINI-Z buggy body matches performance with style featuring a distinctive new printed color scheme complimented by black wheels for the sharpest looking machine on the track. The fully pre-assembled Readyset package makes it simple and enjoyable for anyone to experience advanced R/C buggy performance, whether it’s your first car or as fun-driving second car.
*As the Readyset includes the Syncro KT-531P transmitter operating on FHSS 2.4GHz, it cannot be used with ASF/MHS/FHS 2.4GHz systems.

  • Readyset package allows model to be enjoyed straight after purchasing batteries.
  • Fully pre-assembled chassis with printed polycarbonate body.
  • Real racing performance will please buggy owners. Great for indoor practice.
  • Includes Syncro KT-531P transmitter. Allows various setting adjustments such as steering angle.
  • FHSS 2.4GHz R/C system removes the need to manage frequency bands.
  • Frequency crystals are not required and up to 40 cars can be run at the same time.
  • Optional gyro unit set (sold separately) can be installed. Gyro sensitivity can be manually adjusted on the chassis.
  • Most optional parts already released for MINI-Z Buggy can be installed.

technical-image-01

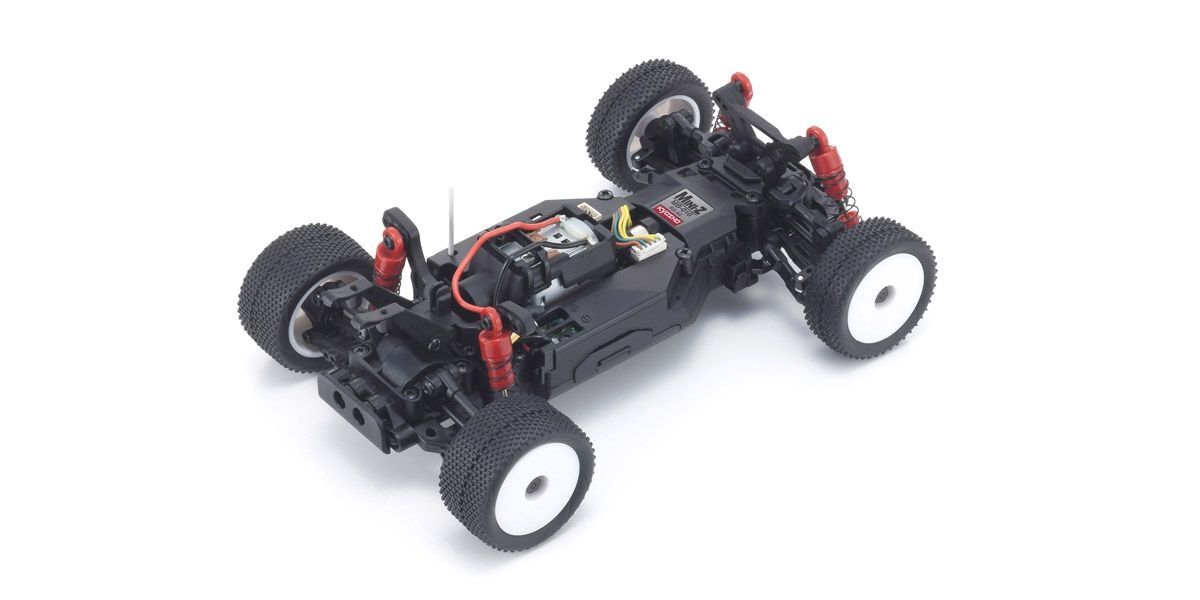

Shaft driven 4WD and 4-wheel independent suspension are condensed in the MINI-Z’s compact size. The chassis powers easily over small bumps and gaps.
technical-image-02
Main parts including sealed diff gearbox are contained within the dust proof structure. 15 ball bearings and a slipper clutch make this machine ready for serious action.
technical-image-03
Flat finish to underside of chassis is achieved with contours for each part shape. Efficient design allows tie-rods to be changed simply by removing the chassis cover.
technical-image-04

Includes connector for optional gyro unit (sold separately) and the tiny volume allows gyro unit’s sensitivity to be manually adjusted.

technical-image-05
4-wheel independent double wishbone suspension equipped with oil shocks. Delivers surefooted road holding over a variety of different road surface conditions.
technical-image-06
Realizes integrated coupling of drive shafts despite the constraints of its size. Also front suspension arms produce a 10-degree skid angle for improved rough-road performance.
technical-image-07
Chassis features shell structure with battery boxes on each side. High rigidity extracts full effectiveness from the suspension.
technical-image-08

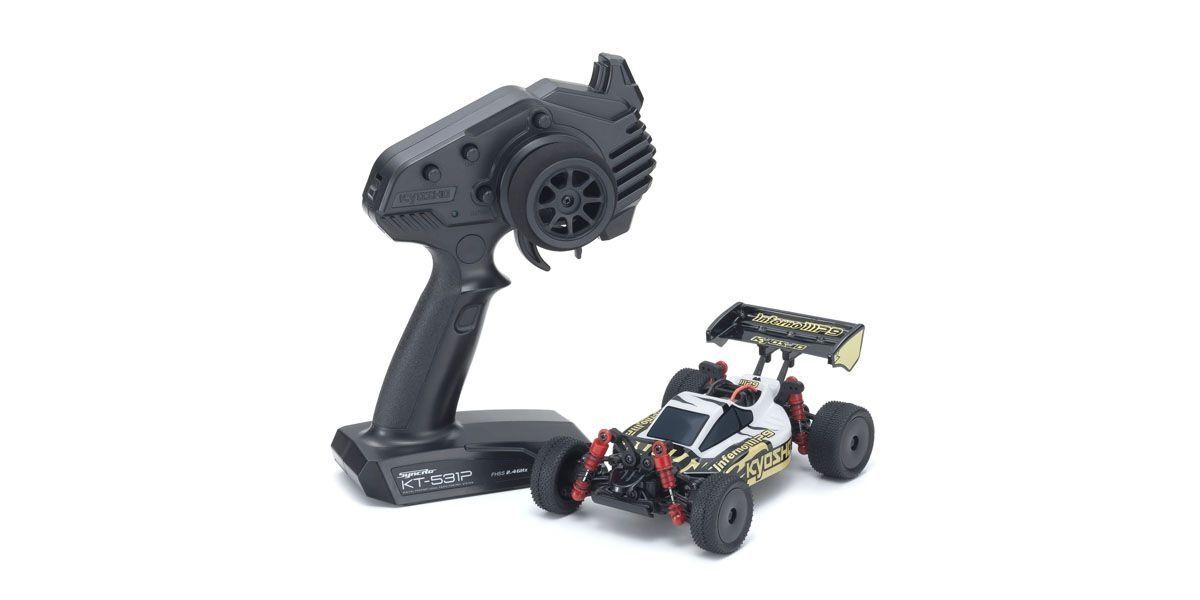

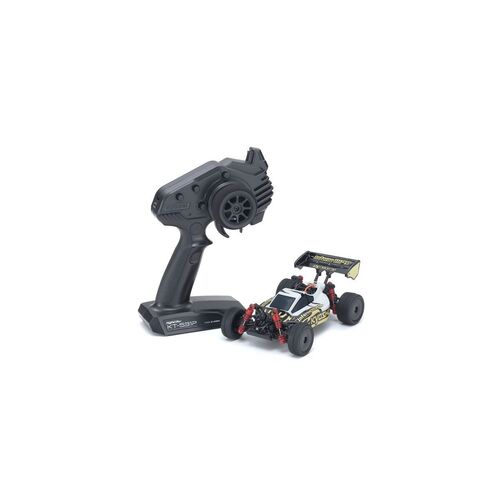

Readyset includes KT-531P transmitter and other items. Requires only 4 batteries for the transmitter to start enjoying realistic buggy performance.
technical-image-09
Optional Syncro Touch KT-432PT transmitter is recommended if increased precision and control response is required. Provides even more precise setting flexibility with smartphone-like control.

TECHNICAL DATA

  • Length:               167mm
  • Width:                 106mm
  • Height:                68mm
  • Wheelbase:        115mm
  • Tread (F/R):        89mm/89mm
  • Tire(F/R):             F37 x 13.5mm/F37 x 18.5mm
  • Weight:               200g (approx.)
  • Motor:                 130 class
  • Battery:               AAA alkaline x 4
  • R/C System:       KT-531P FHSS 2.4 GHz

KIT CONTENT

  • Factory assembled chassis with pre-installed R/C unit
  • KT-531P transmitter
  • Pre-painted polycarbonate body finished with markings
  • Pinion gears (11T, 13T, 15T)
  • Spur gears (33T, 35T)
  • Pinion gear tool
  • Pairing stick
  • Wheel wrench
  • Spare nuts for wheels

REQUIREMENT TO RUN

  • AAA alkaline batteries x 4 or NiMH batteries x 4 for chassis
  • AAA alkaline batteries x 4 for KT-531P transmitter

(KYO-32093WBK)

SKU KYO-32093WBK
Barcode # 4548565438112
