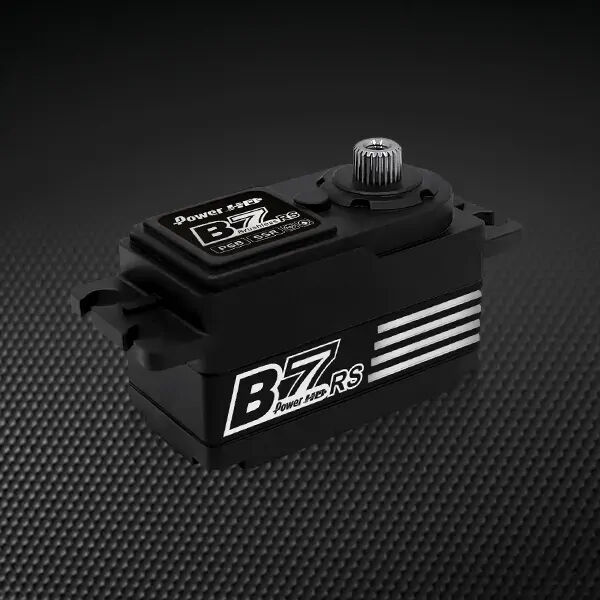

Power HD HV Brushless Servo - Silver

Item No.: PHD-B7-RS-S

Please login or register to view pricing.

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC. Weighing only 48g, the low-profile B7-RS has improved precision and speed over similar servos. The titanium & steel gears give great torque, while keeping weight to a minimum. How To: Install a ServoIn this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears. Features0.055 sec/60° @ 7.4V. Aluminium case. Low-profile & light-weight. Titanium & steel gears. 2 x metal ball bearings. Compatible with SANWA SSR Mode. Servo Dimensions Total Height (A ) = 31.2mm. Body Width (B ) = 41.2mm. Below Mount (C ) = 16.8mm. Above Mount (D ) = 9.59mm. Total Length (E ) = 54.8mm. Total Width (F ) = 20mm. SpecificationsTorque(6.0V): 10kg-cm (138.8 oz/in). Torque(7.4V): 13kg-cm (180.5 oz/in). Speed: 0.65 sec (6V) ? 0.55 sec (7V). Operating Voltage: 6-8.4V. Weight: 48g (1.69oz). Bearing Type: 2 x Ball. Gear Type: Titanium & Steel. Operating Temperature: -20?~60? . Working frequency: 1520?s / 333hz. Size: 41.0 x 20.0 x 26.4 mm (1.61 x 0.79 x 1.04 in). Included itemsDescription. QTY. B7-RS Low-Profile 13kg 7.4V HV Servo. 1. Hardware. Set.

(PHD-B7-RS-S)

SKU PHD-B7-RS-S
Barcode # 6929188000715
Brand Power HD
