Power HD Standard Coreless Motor Copper & Aluminium Gear Waterproof Servo

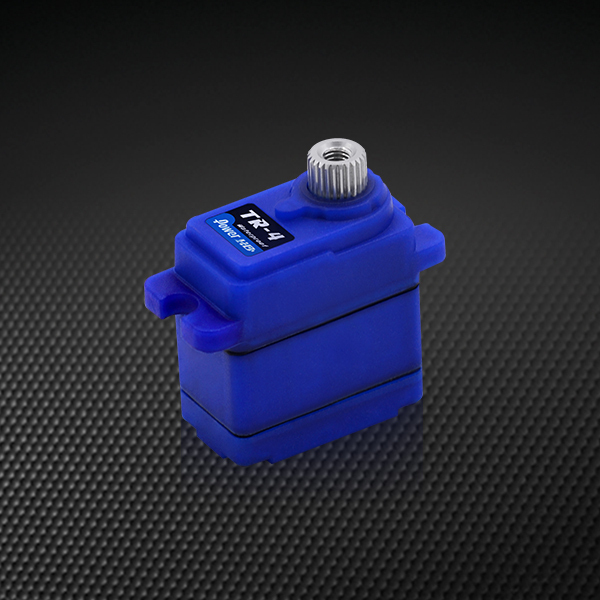

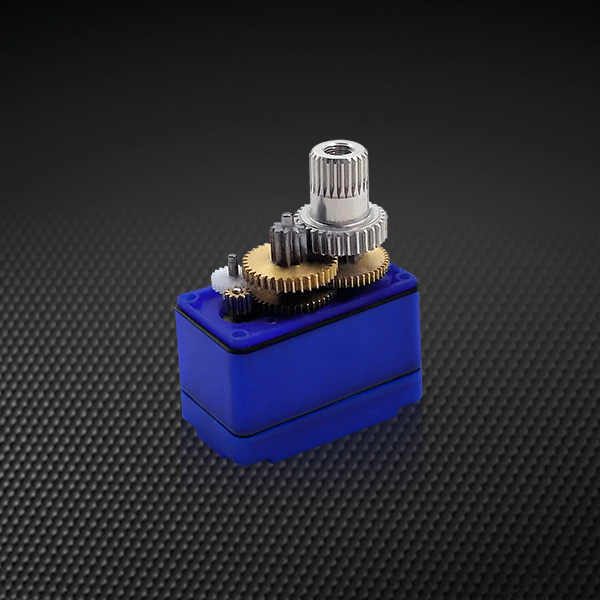

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC. New from Power HD the TR-4! Having compatibility with high voltage 6V-8.4V, at 7.4V input the servo pulls up to 2.6kg-cm of torque at a speed of down to 0.10s. A long 35cm receiver wire and mini size of 22.5 x 12.5 x 24.0 mm ensures the servo is a direct fit in crawler Traxxas TRX-4 Crawler Range! The TR-4 servo comes with 25T metal spline and special gaskets making it waterproof for go-everywhere capabilities. . SpecificationsTorque(4.8V): 1.8 kg-cm (25.0 oz/in). Torque(6.0V): 2.2 kg-cm (30.6 oz/in). Torque(7.4V): 2.6 kg-cm (36.1 oz/in). Speed: 0.15 sec (4.8V) ? 0.12 sec (6.0V) ? 0.10 sec (7.4V). Operating Voltage?4.8 ~ 7.4 DC Volts. Weight: 16.0 g (0.56 oz). Gear Type?Copper&Alu. Operating Temperature: -20?~60? . Working frequence?1520?s / 50hz. Size?22.5 x 12.5 x 24.0 mm ( 0.89 x 0.49 x 0.94 in). Power HD TR-4 Servo SpecificationsTotal Height (A ) = 29mm. Body Width (B ) = 22.8mm. Below Mount (C ) = 15.5mm. Above Mount (D ) = 11.5mm. Total Length (E ) = 29.7mm. Total Width (F ) = 12.8mm.
