Power HD Standard Coreless Motor Copper & Aluminum Gear Servo

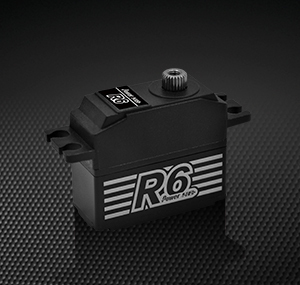

Power HD have introduced their new R6 servo ideal for 1/12th cars. Featuring a coreless motor it pulls up to 7.5kg-cm of torque at 0.08s and weighs only 28.5g. The high-voltage compatible servo is usable with 4.8V to 8.4V input and uses copper and aluminium gears. How To: Install a ServoIn this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears. Power HD R6 Servo Dimensions Total Height (A ) = 34.7mm. Body Width (B ) = 35mm. Below Mount (C ) = 20.5mm. Above Mount (D ) = 14.2mm. Total Length (E ) = 35mm. Total Width (F ) = 15.1mm. SpecificationsTorque(6.0V): 6.5 kg-cm (90.27 oz/in). Torque(7.4V): 7.5 kg-cm (104.16 oz/in). Speed: 0.09 sec (6.0V) ? 0.08 sec (7.4V). Operating Voltage?6.0 ~ 8.4 DC Volts. Weight: 28.5 g (1.01 oz). Bearing Type: Ball Bearing x 2. Motor Type?Coreless Motor. Gear Type?Copper & Aluminum. Operating Temperature?-20?~60? . Working frequence?1520?s / 333hz. Size?35.0 x 15.1 x 29.5 mm ( 1.38 x 0.59 x 1.136 in). Included itemsDescription. QTY. R6 Black Aluminium Mini Coreless 7.5kg 8.4V Aluminium & Copper Geared Servo. 1. Servo Hardware Set. 1.
