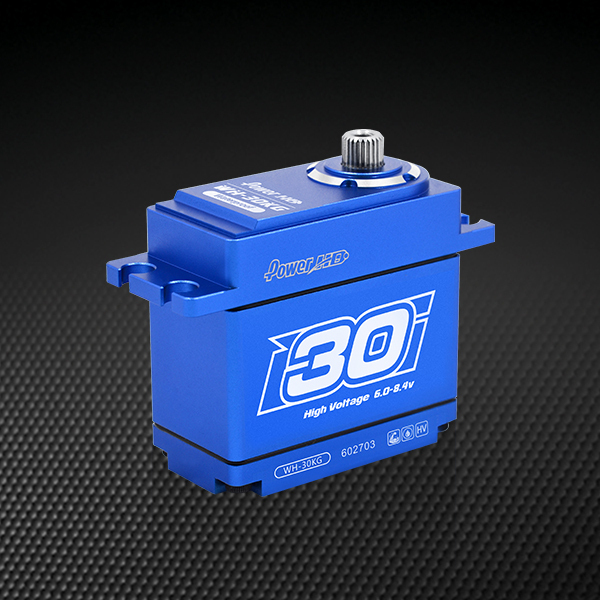

Power HD Standard Coreless Motor Steel & Aluminum Gear Digital Waterproof Servo

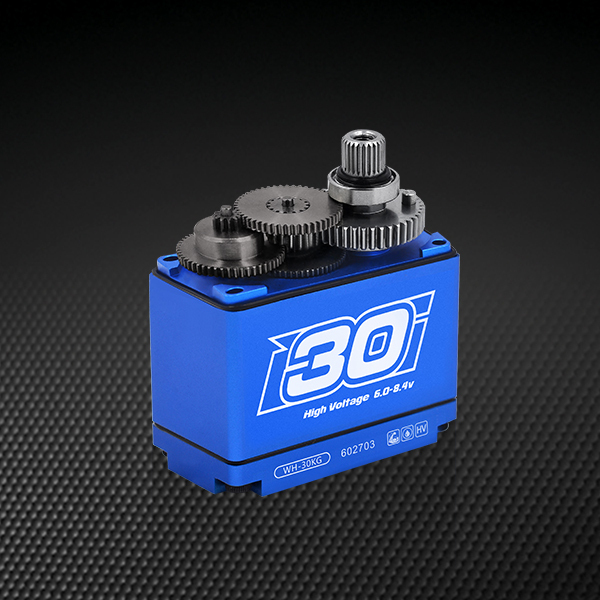

Servos are powered by the ESC's output to the receiver. If you're using a higher-strength servo than the ESC can support (usually greater than 20kg), you may experience 'brown-outs' where the radio signal can be interrupted and cause erratic driving. This can be helped by plugging a Glitch Buster into the receiver smoothing the current delivery. However, in some cases, you may need to install an external BEC. How To: Install a ServoIn this video, Hamish gives a step-by-step guide on installing a Servo and how to avoid stripping your servo gears. Power HD brings a range of crawler specific high-torque & high-voltage servos. With three variants; 40kg/cm, 30kg/cm, & 20kg/cm featuring a waterproof case & wiring system. FeaturesServo case is CNC machined, ensuring higher quality. Customised Power HD waterproofing system. Uses Hardened Steel Gears for extra strength and durability. The 32-bit high-frequency MCU creates more precise operation with locked-rotor & power-on slow-start protection. Casing is anodized in Blue. SpecificationsTorque(6.0V): 22.0 kg-cm (305.5 oz/in). Torque(7.4V): 26.0 kg-cm (361.1 oz/in). Torque(8.4V): 30.0 kg-cm (416.6 oz/in). Speed: 0.16 sec (6.0V) ? 0.13 sec (7.4V) ? 0.11 sec (8.4V). Operating Voltage?6.0 ~ 8.4 DC Volts. Weight: 82 g (2.89 oz). Bearing Type?Ball Bearing x 2. Motor Type?Coreless Motor. Gear Type?Titanium & Steel. Operating Temperature?-20?~60? . Working frequence?1520?s / 333hz. Size?40.7 x 20.5 x 38.5 mm (1.60 x 0.81 x 1.52 in). Included itemsDescription. QTY. Blue Aluminium Standard Coreless 30kg 8.4v Steel Geared Waterproof Servo. 1. Hardware Set. 1. Decal Sheet. 1. Power HD WH-30KG Coreless Servo Dimensions Total Height (A ) = 44mm. Body Width (B ) = 40.7mm. Below Mount (C ) = 27.9mm. Above Mount (D ) = 14.3mm. Total Length (E ) = 54.1mm. Total Width (F ) = 20.5mm.
