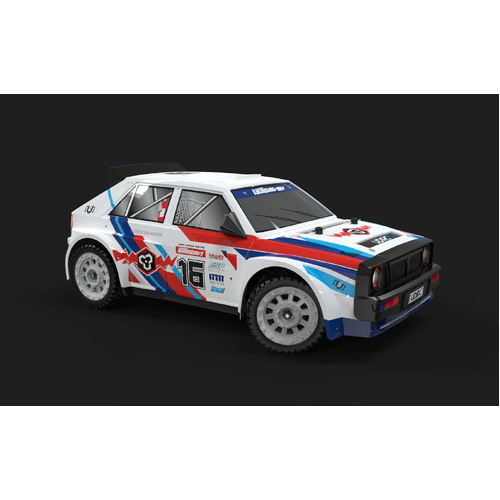

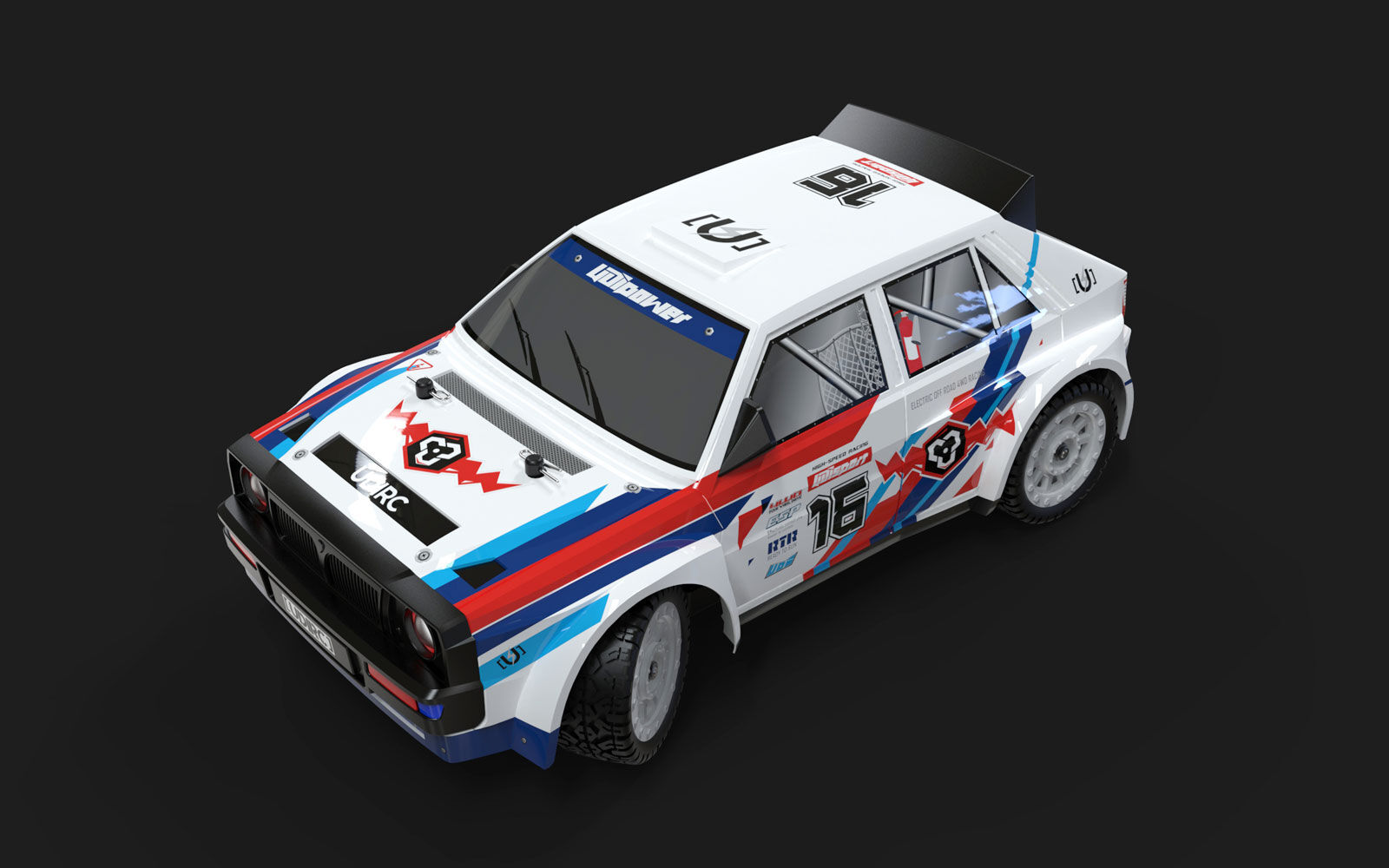

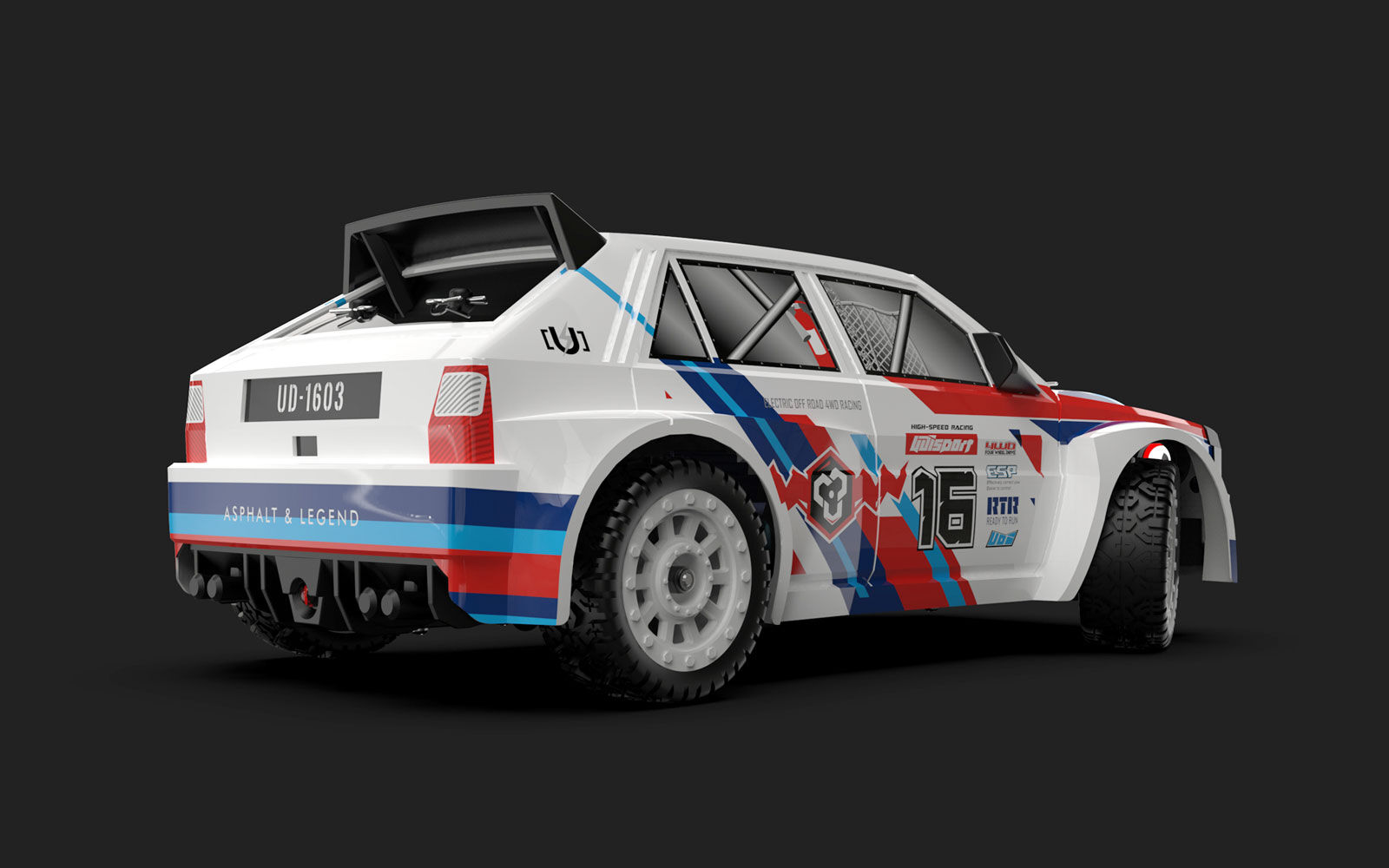

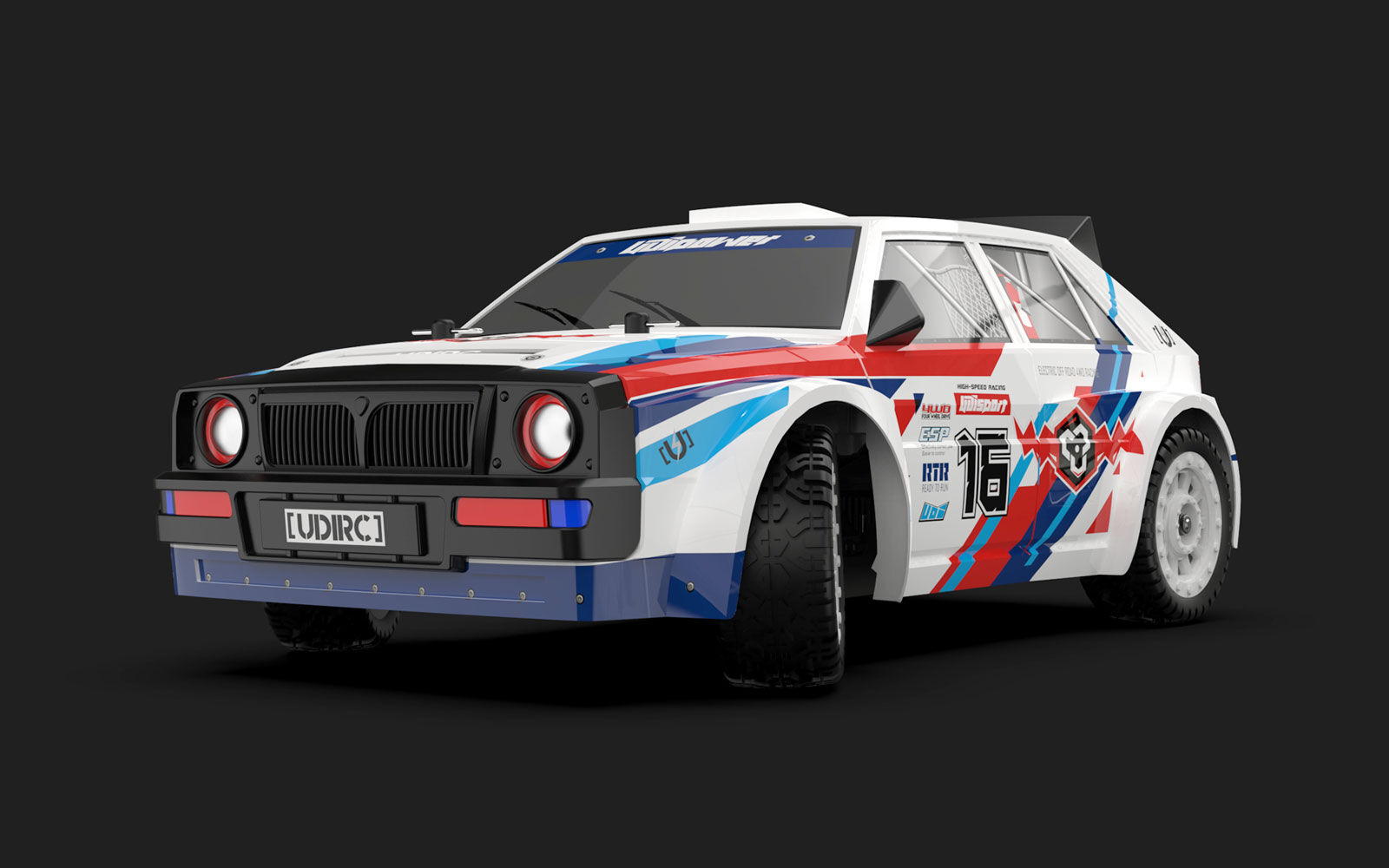

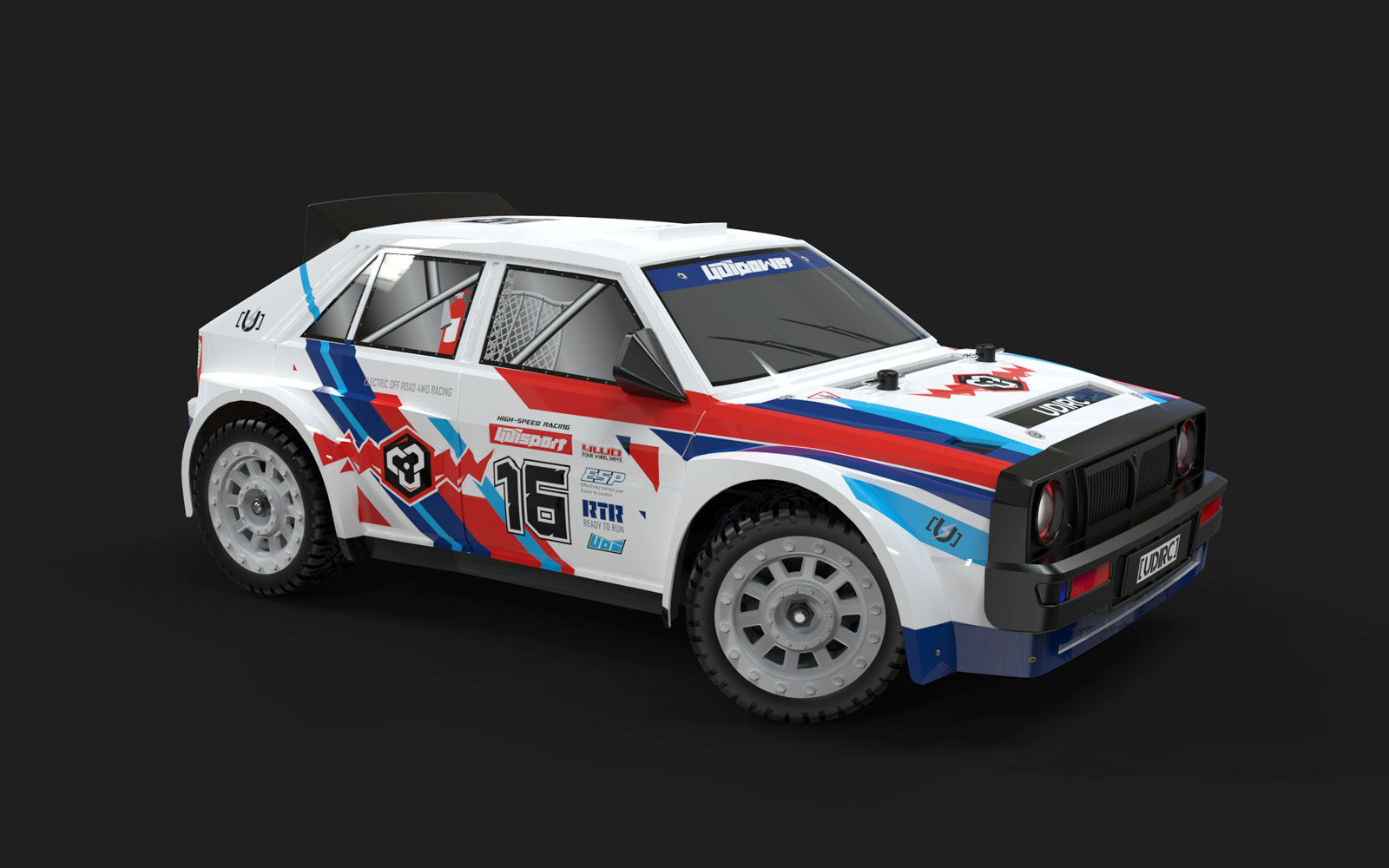

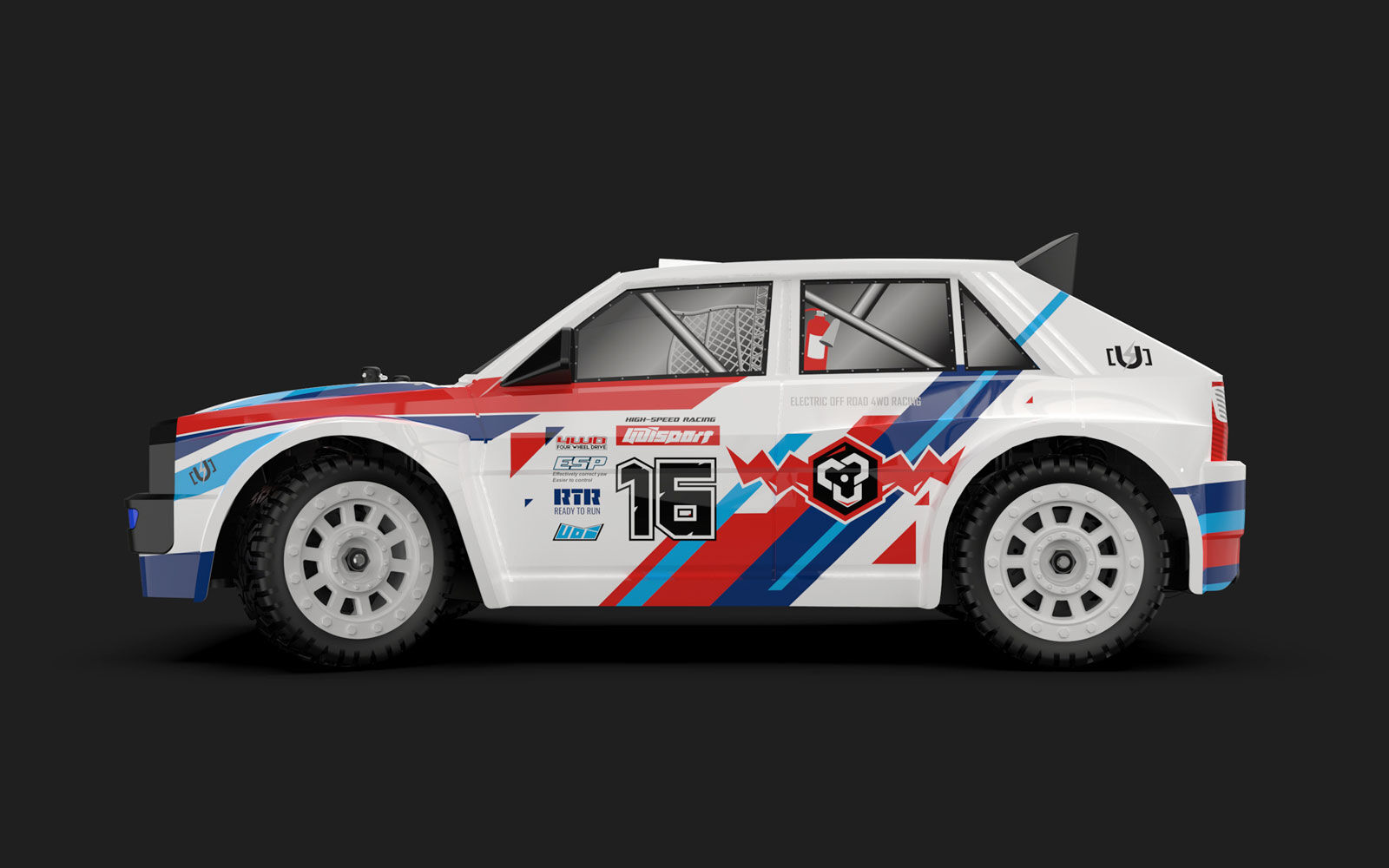

1/16 Full Scale High Performance 4WD Racing Car
Speed & Drift Racing car
Electronic Stability Program
When the trucks driving occurs side slip or out of control,it can timely and effectively correct the car attitude and direction. The function and sensitivity of gyroscope sensor can be adjusted and turn off by the ESP knob of the transmitter.
High Speed Bearings (The Whole Car)
The whole vehicle uses ball bearings to improve the mechanical transmission efficiency. With ball bearings, the friction during power transmission is reduced, the transmission efficiency of mechanical power is improved, and mechanical damage is reduced at the same time.
Planetary differential
High-strength nylon planetary differential (can be upgraded to metal differential), strong and wear-resistant, more stable in curve driving.
2 in 1 received ESC box
- 4CH 2.4G waterproof,Dust-proof design
- Electronic Stability Program(ESP)
- Low Voltage Cutoff and Thermal Overload Protection
- Brake, BEC, LVC sensitivity, reverse speed settings
Strong magnetic motor
7.4V, 380SM high performance power system
Power Supply
7.4V, 1200mAh rechargeable LiPo battery
INNOVATION
Explore these key features to see how every design element on the UDIPOWER combines to creat an authentic and thrilling driving experience.
Two set of tires
RC High Speed/Drift Car. Equipped with two sets of different tires to suit different reasons and can be replaced freely.
Bodyshell Overview
The bodyshell made with PVC materials and printing in colorful, it’s high toughness is not easy to deformation.
Model level remote control handle
- 2.4GHz full proportion radio remote control system
- Steering range percentage adjustment
- Electronic stability system (ESP)
- Steering trim
- 4 channels transmitter
- With out of control protection function
- Speed switch
- Controller Headlight
What’s In The Box:
- Racing Truck with ESC and Motor
- User Manual
- 2.4GHz Transmitter
- Maintenance tools
- Rechargeable battery
- USB Charger
What You’ll Need:
-
4×1.5V, AA battery for the transmitter
Power.
Strength.
Speed. 1/16 Full proportion high-performance 4WD racing car, integrated ESP (Electronic Stability Program), effectively correct yaw, easier to control.
It embodies the high level of creativity in design and engineering that unleashed a stunning array of new technology, new innovation.
Fortifies them with brute strength and an intense, take-no-prisoners attitude to deliver what is simply the ultimate 1/16 monster.
Get ready for a whole new level of power, strength, and speed.
Two new striking colour schemes to choose between.
Which one will you pick? UD1603-PRO UD1604-PRO 4CH 2.4G integrated control ESCWaterproof, dustproof design ESP (Electronic Stability Program) Low voltage cut-off and thermal overload protection Brake, BEC, LVC sensitivity, reverse speed, and motor timing settings.
Steering ServosWaterproof and dustproof design Torque: ?2.3 kgf·cm @6V Speed: ?0.10 Sec/60° @6V Dimensions: 40×29.6×13.2mm.
Replaceable WheelsStandard tyres and drift tyres Equipped with two sets of different tyres to adapt to different roads and can be changed freely.
Headlights & Tail-LightsAngel Eyes Headlights Light can be controlled.
Power Supply7.4V, 1200mAh (8.88Wh) Rechargable Li-Ion Battery. USB ChargerEquipped with USB charger, which has various kinds of charging ways and makes charging become more convenient.
Charging methods:.
Fully Integrated Aero Integrated chassis and diffuser for slick underside airflow.
Double Protection Front and rear bumpers, separating the force generated by the violent impact.
Model Level Remote Control Handle 2.4GHz Racing Wireless Control SystemErgonomic steering wheel for precise control.
On-the-fly adjustable AVC gain for personalized handling.
Lightweight and ergonomic design for long bashing. 3 channel radio system. 2.4GHz connection built around DSMR technology.
Full-range telemetry capabilities.
FeaturesHigh speed & Drift Modes by replacing included tyres.
Bright headlights & tail-lights. ESP body electronic stability system with gyroscope.
Brushless motor.
Includes Li-Ion battery.
Ready to run! .
SpecificationsModel: UD1603-PRO.
Approximate Assembly Time: Less than half an hour.
Ball Bearings: Full set.
Battery: Included.
Transmission distance: About 60 meter.
Running time: About 15 minutes.
Battery Capacity: 7.4V, 1200mAh.
Charger: Included.
Completion Level: Ready-To-Run.
Differential: Two oil-filled gear.
Drivetrain: 4WD.
Drive Type: Forward/Brake/Reverse.
Final Drive Ratio: 6.05:1.
Front Track: 3.98? (101mm).
Power Type: Electric.
Gear Pitch: 0.5/0.7/1.0MOD.
Ground Clearance: 0.39? (10mm).
Internal Gear Ratio: 2.8:1.1.
Motor Type: Brushless Motor.
Pinion: 16T.
Product Length: 11.81? (300 mm).
Product Width: 5.91? (150 mm).
Product Height: 3.93? (100 mm).
Product Weight: 1.4lbs (635.5g).
Radio: Included.
Rear Track: 3.98? (101mm).
Receiver: Included.
Scale: 1/16.
Servos: Included.
Speed Control: Included.
Spur Gear: 38T.
Suspension: Independent.
Vehicle Type: On-Road.
Wheelbase: 6.69? (170mm).
Includ
(UDI-UD1603PRO)
