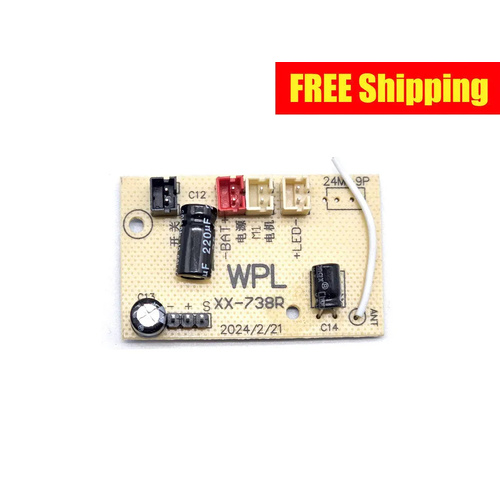

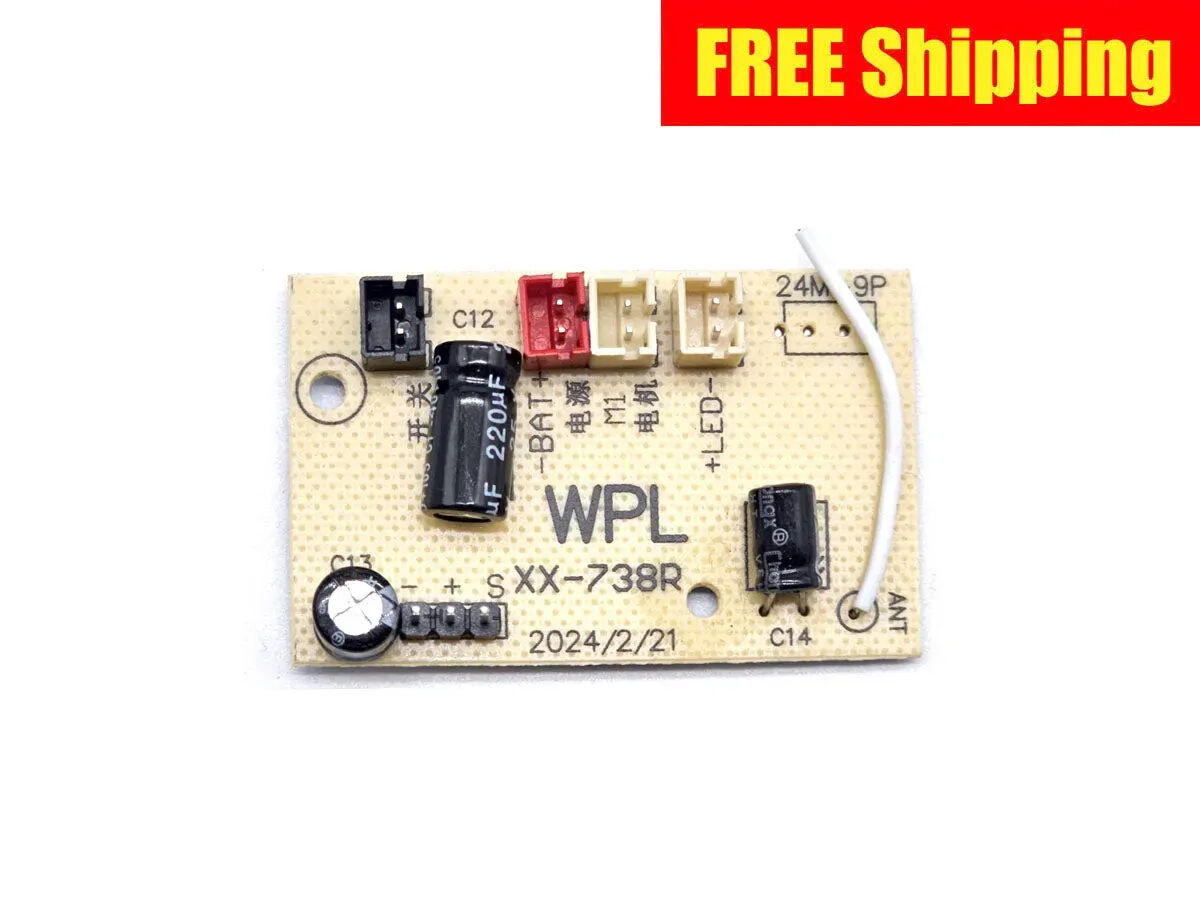

WPL Full-scale receiving board

***Update Jan 2025 - this version of proportional receiver is being phased out and has been superseded by the new BC Receiver .

Please also use the new remote for the new BC Receiver.

Proportional both steering and throttle.

The compatible RTR Remote has Red LED, not the Blue LED.

Formally known as XX-162R receiver You may receive the newer version with XX-412R, XX-532R or XX-738R numbering Does not work with Non-proportional Remote Works with WPL Proportional Remote only.

If you don't have one - Link here Works with standard Servo with 3 wires lead.

Works with 2S Li-Ion or LiPo battery only.

Does not work with 6V NiCd from non proportional RTR What is Proportional? - receiver output according to how much you input on remote, if you turn the steering little, the car's steering moves a little, the same as throttle This is a good upgrade if you bought a non-proportional RTR * factory improvise the receiver from time to time so you may receive one that does not look the same as the photo but rest assured it's always better than the previous version. * meant for upgrading your non-proportional RTR of WPL to proportional control. * this does not work with Non-WPL electronics/plugs.

You should always check for polarity before turning on * not compatible with D12 or D42 remote * do not use connectors from MN/Fayee, they are reversed, you risk frying your board! Instruction manual - Here More information about receivers numbering - Here
