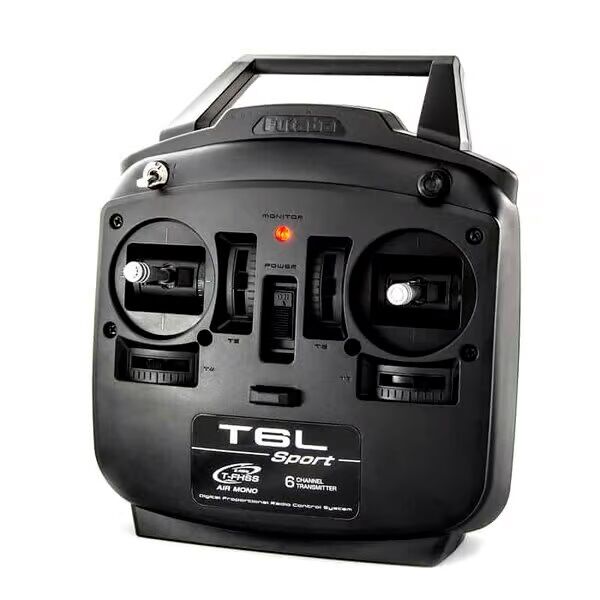

6L Sport Transmitter – 6-Channel Digital Proportional RC System

2-Stick, 6-Channel, T-FHSS Air System

FEATURES

T-FHSS AIR (MONO DIRECTIONAL) – 2.4 GHZ 6-CHANNEL TRANSMITTER:
The Futaba 2.4 GHz T-FHSS Air system is employed. No telemetry.

BUILT-IN ANTENNA:
Antenna built into the transmitter provides a simple appearance and improves handling ease.

POWER-SAVING TYPE TRANSMITTER:
Four AA alkaline batteries can be used.

MIXING TYPE SELECTION:
Elevon, V-Tail, and Flaperon mixing type can be selected to match the aircraft type.

TRAINER FUNCTION (STUDENT ONLY):
The T6L Sport trainer function lets you practice flying as a student by connecting the T6L Sport to the instructor’s Futaba transmitter.

AUX CHANNEL 5 SWITCH FUNCTION

AUX CHANNEL 6 DIAL FUNCTION

COMPATIBLE RECEIVERS:
T-FHSS Air: R3006SB, R3008SB, R3001SB

CONTENTS

YOUR T6L INCLUDES THE FOLLOWING COMPONENTS:

• – T6L Sport Transmitter
• – R3106GF Receiver

TRANSMITTER SPECS

TRANSMITTER FREQUENCY:
2.4 GHz band

POWER SUPPLY:
4-AA 1.5V  (sold separately)
Alternate options:
HT5F1700B NiMH battery (FUTEBA0142)
FT2F2100B Li-Fe battery (FUTEBA0135)

RECEIVER SPECS

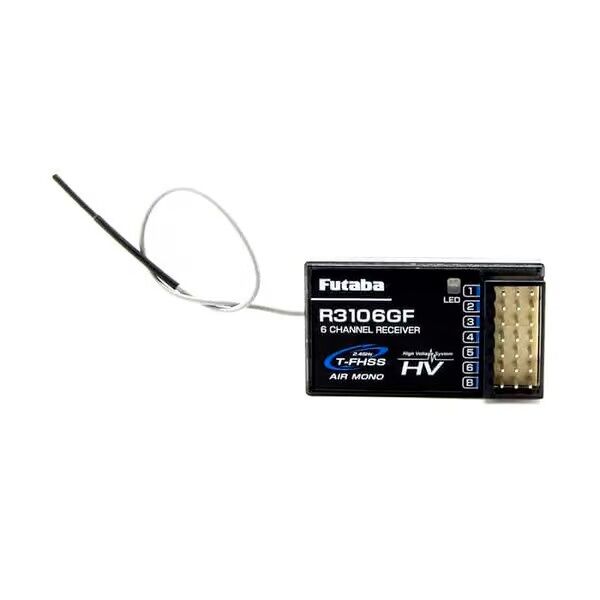

R3106GF

T-FHSS (Mono Directional) – 2.4 GHz 6-Channel Receiver

SIZE:
25.0 x 43.1 x .8 mm
0.98 x 1.70 x 0.35 in

WEIGHT:
7.8 g
0.3 oz

RATED VOLTAGE:
DC 4.8~7.4V

VOLTAGE RANGE:
DC 4.0~8.4V
